Incorrect Materials installed in Facade Framework
The façade support framework had been assembled using small aluminium angles and flat aluminium strips instead of the specified structural T-sections required to support stone panels weighing approximately 100 kg each. The flat strips appeared to be connected to the angles using only a single self-drilling Tek screw at each junction. This unapproved arrangement may provide inadequate resistance to dead load, wind load, rotation, pull-out and progressive connection failure. Failure of the framework could result in the detachment and fall of heavy stone panels, presenting a serious risk to workers and the public. The installation should be stopped, isolated and reviewed urgently by the responsible façade structural engineer.
- NCQLE reference
- NCQLE-2026-00009
- Quality topic
- Defects and corrective action
- Lesson type
- Failure
- Evidence rating
- Experience
- Published
- 31 July 2026
- Last reviewed
- 1 August 2026
Evidence basis: Supported by relevant professional experience. This learning is provided for professional consideration and does not replace project-specific competent advice, statutory duties or contractual requirements.
Context

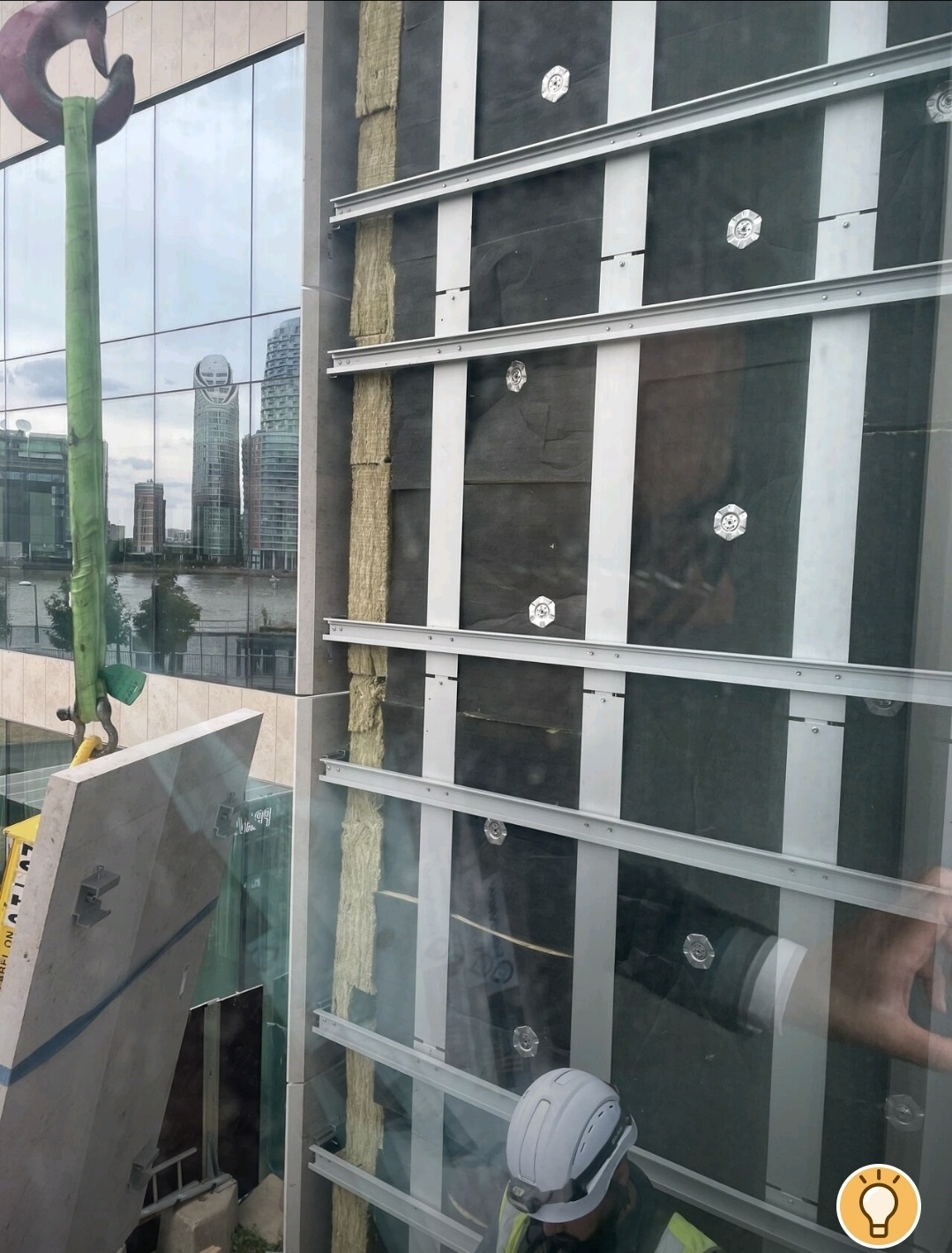

During the construction of a stone-clad rainscreen façade, the carrier framework was inspected while the external stone panels were being lifted into position. Each panel weighed approximately 100 kg. The inspection focused on whether the vertical support profiles, horizontal rails and their connections matched the approved structural façade design and provided a continuous, adequately fixed load path back to the building structure. The façade framework had been constructed using small aluminium angle sections and flat aluminium strips rather than the specified T-sections. The flat strips appeared to be supported by the angles and secured at each connection with only one self-drilling Tek screw. This non-standard arrangement was being used to support stone façade panels weighing approximately 100 kg each, without visible evidence that the revised load path or connections had been structurally designed or approved.
The transferable lesson
Structural façade components must not be substituted, reduced or fabricated from alternative sections without a documented design assessment and approval from the responsible façade structural engineer. The complete load path, including profiles, brackets, fixings and connections, must be capable of safely supporting the panel dead load, wind actions and installation loads. Site-made arrangements using single fixings must never replace the specified support system without verified calculations and an approved detail.
Recommended action
Verify all façade support profiles, brackets and fixings against the approved drawings, structural calculations and manufacturer’s specification before installation. Introduce a formal inspection hold point before heavy panels are fitted. If any unapproved substitution is identified, stop work, establish an exclusion zone, notify the façade designer and obtain a documented engineering assessment. Inspect all affected areas, replace non-compliant components and record the completed remedial work before installation resumes.
Limitations and application
This lesson applies to façade systems supporting heavy cladding panels where the profiles, connections or fixing arrangements differ from the approved design. The actual capacity and required remedial work must be determined by a competent façade structural engineer using the project-specific panel weights, spans, wind loads, material grades, fixing capacities and supporting-substrate details. Photographs alone cannot confirm structural adequacy or the full extent of the installation.
