Inaccessible Basin Waste Trap Concealed Within Wall

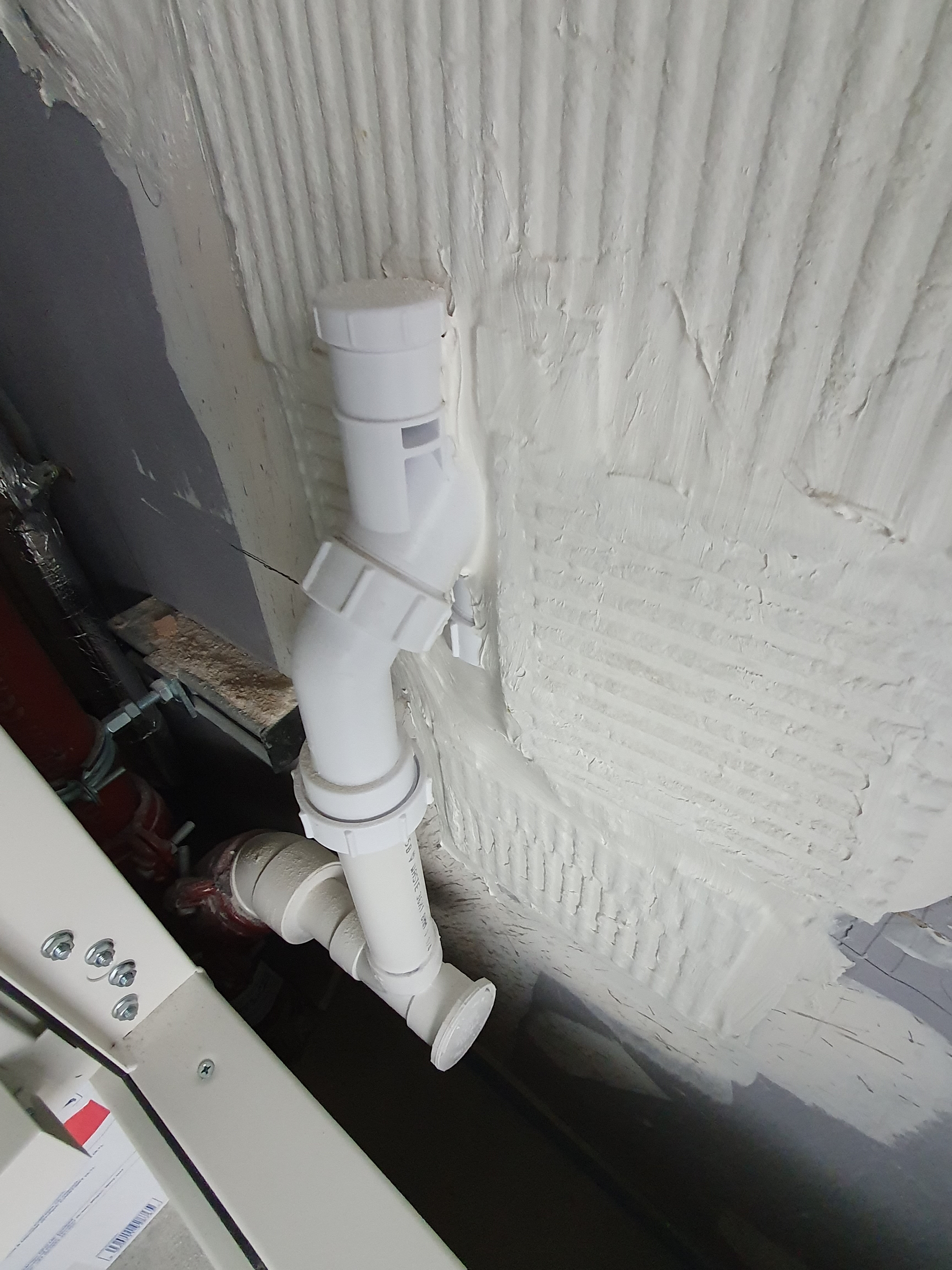

The basin waste trap was installed within the wall construction without a suitable access panel or other means of safely inspecting, cleaning or servicing it. Any future maintenance or blockage removal would require the wall lining to be opened, potentially damaging the wall’s acoustic performance and, where applicable, its required fire resistance. The trap should be repositioned or provided with a properly designed, accessible and suitably rated access panel.
- NCQLE reference
- NCQLE-2026-00022
- Quality topic
- Installation quality
- Lesson type
- Failure
- Evidence rating
- Experience
- Published
- 2 August 2026
- Last reviewed
- 2 August 2026
Evidence basis: Supported by relevant professional experience. This learning is provided for professional consideration and does not replace project-specific competent advice, statutory duties or contractual requirements.
Context
The issue was identified during the installation of basin drainage pipework within a service zone behind a wall lining. The basin waste trap and cleaning points were positioned so that they would become inaccessible once the wall was completed. The surrounding wall was also required to provide acoustic separation and, where applicable, fire resistance, meaning that future access could damage or compromise the completed construction. The basin waste trap was installed within the wall construction and was intended to be permanently concealed by the wall lining. No suitable access panel or maintenance opening was provided, leaving no practical means of inspecting, cleaning, unblocking or replacing the trap. Any future maintenance would require the wall to be opened, potentially compromising its acoustic performance and, where applicable, its fire resistance.
The transferable lesson
Waste traps and other components requiring routine inspection, cleaning or replacement must not be permanently concealed within wall constructions without suitable access. Serviceability must be coordinated during the design and installation stages, with access arrangements that preserve the wall’s required fire and acoustic performance throughout its life.
Recommended action
Coordinate basin waste routes and trap locations before walls are closed. Position traps where they remain readily accessible for inspection, cleaning and replacement. Where concealment is unavoidable, provide a suitably sized, tested and correctly installed access panel that maintains the wall’s required fire and acoustic performance. Inspect and record the installation before closing the wall, and include access and maintenance requirements within the as-built information and operation and maintenance manual.
Limitations and application
The required solution will depend on the wall construction, its fire and acoustic ratings, the selected waste system and the manufacturer’s installation instructions. Not every wall requires fire-rated access, but any access panel or penetration must maintain the performance required by the approved design. The final arrangement should be confirmed by the relevant plumbing, acoustic and fire specialists before the wall is closed.
