Porus Panels install on UK rail infrastructure project
During the inspection of porous architectural wall panels installed on a major UK rail infrastructure project, significant vertical staining, water marks and colour variations were observed across the completed finish, particularly around panel joints and along the lower course. Due to the highly porous nature of the panels, moisture, dirt and other contaminants had been absorbed deep into the surface rather than remaining as superficial deposits. Once absorbed, this staining is extremely difficult, and often impossible, to remove without leaving further marks, colour variations or surface damage. Conventional cleaning methods are therefore unlikely to restore a consistent and acceptable appearance. The cause of the contamination must be investigated, including storage, handling, protection, joint detailing and exposure during construction, before specialist treatment or panel replacement is considered.
- NCQLE reference
- NCQLE-2026-00012
- Quality topic
- Product compliance
- Lesson type
- Failure
- Evidence rating
- Experience
- Published
- 31 July 2026
- Last reviewed
- 1 August 2026
Evidence basis: Supported by relevant professional experience. This learning is provided for professional consideration and does not replace project-specific competent advice, statutory duties or contractual requirements.
Context

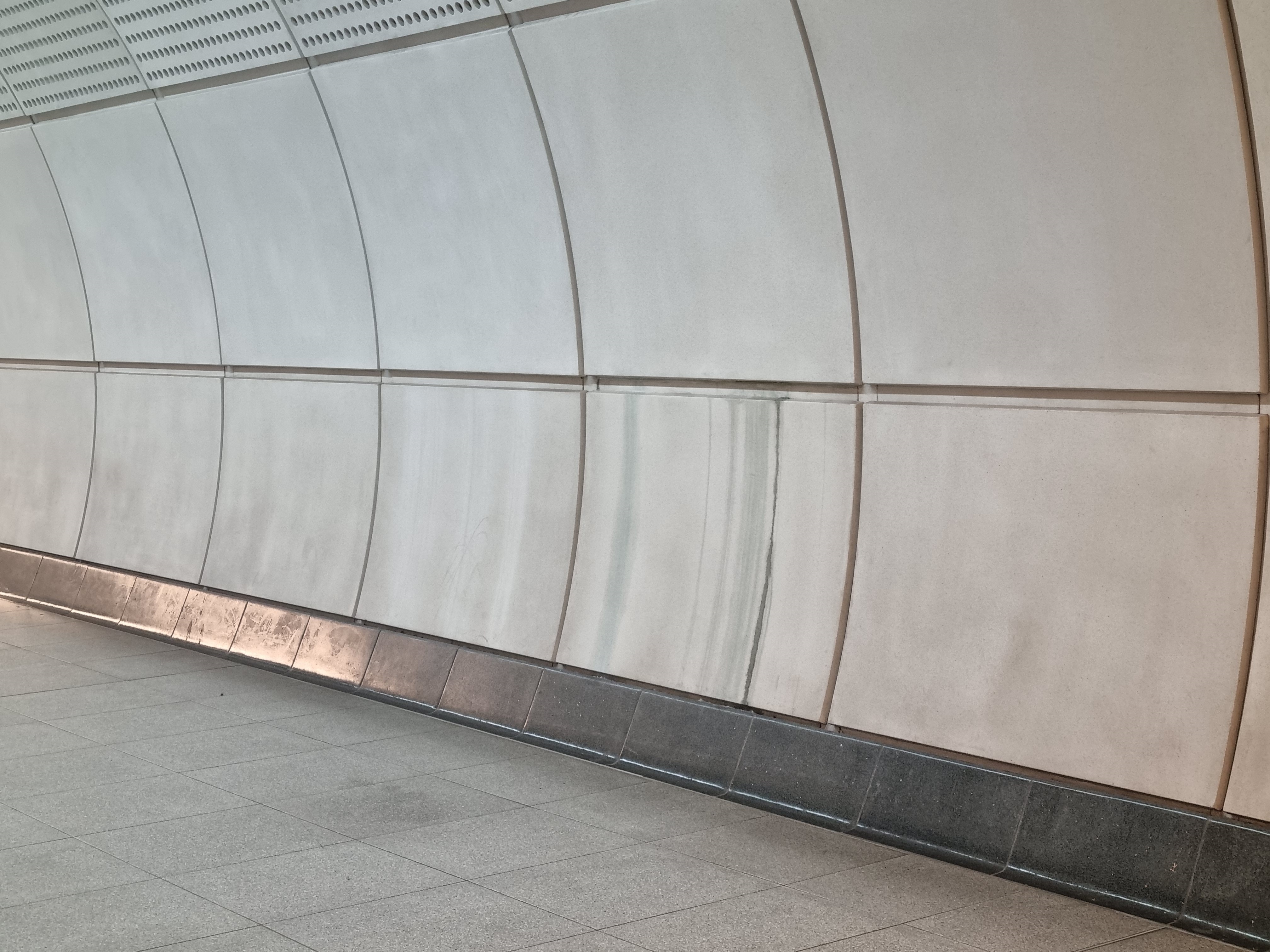

During the inspection of completed internal wall finishes on a major UK rail infrastructure project, porous architectural panels were reviewed for alignment, joint consistency, colour uniformity and overall visual quality. The panels were installed in a high-traffic public area where appearance, durability, maintainability and resistance to routine cleaning were important requirements. Several panel areas had also been covered with stickers, apparently to conceal dirt, staining or graffiti rather than addressing the underlying condition through an approved cleaning or remedial process. Porous architectural wall panels were observed with extensive vertical streaking, water marks and inconsistent colour across the completed installation. The staining was most noticeable beneath horizontal joints and across the lower panel course, suggesting that moisture or contaminants had tracked over and been absorbed into the panel surfaces. The finished appearance did not meet the expected visual quality standard.
The transferable lesson
Porous architectural panels require controlled storage, handling, installation and protection because moisture and contaminants can be readily absorbed and may cause permanent staining. Joint details, adjacent materials, cleaning products and water-management arrangements must be reviewed before installation. A representative sample or completed benchmark area should be approved and exposed to expected site conditions before full installation proceeds.
Recommended action
Confirm with the manufacturer that the porous panels are suitable for the intended environment and apply an approved protective sealer before they are exposed to construction dirt, water runoff or general contamination. Complete a benchmark panel and verify that the sealer does not alter the colour, texture, fire performance or other required characteristics. Because contaminants can penetrate the porous surface and become permanent, panels must be sealed, carefully stored and protected throughout installation. Any staining should be addressed immediately using manufacturer-approved methods, as delayed cleaning may be ineffective and could require panel replacement.
Limitations and application
The cause and appropriate treatment will depend on the panel composition, porosity, surface finish, joint design, environmental exposure and type of contaminant. A visual inspection alone cannot confirm whether staining is superficial or permanently absorbed. Cleaning or sealing products must be approved by the panel manufacturer and tested on a discreet sample area, as unsuitable treatments may alter the colour, texture or long-term performance.
